MACO A-TS Automatic Multipoint Lock - Full Length

Backset

Faceplate

Please select from the options above.

Quantity:

Magnet Operated Automatic Locking, Full Length Hook Lock - Locks as soon as the door is closed!

Key Features

Three latches engage, ensuring an even distribution on the weather seals along the entire height of the door. The door is sealed tight, keeping drafts and moisture outside and the warmth inside.
The main latch automatically triggers the locking mechanism as soon as the door enters the frame. In addition, a magnet monitors the correct closing position, forming the two criteria to ensure secure locking. Two hooks and the central deadbolt automatically engage, and the door is triple locked all without a key.
Two options available to change the automatic locking function to a day-latch function for ultimate ease of use.
Easy to pair with any of Maco’s electronic locking options.
The A-TS can be used for left hand or right hand configurations, simply by unscrewing and reversing the latches.

Key Technical Details

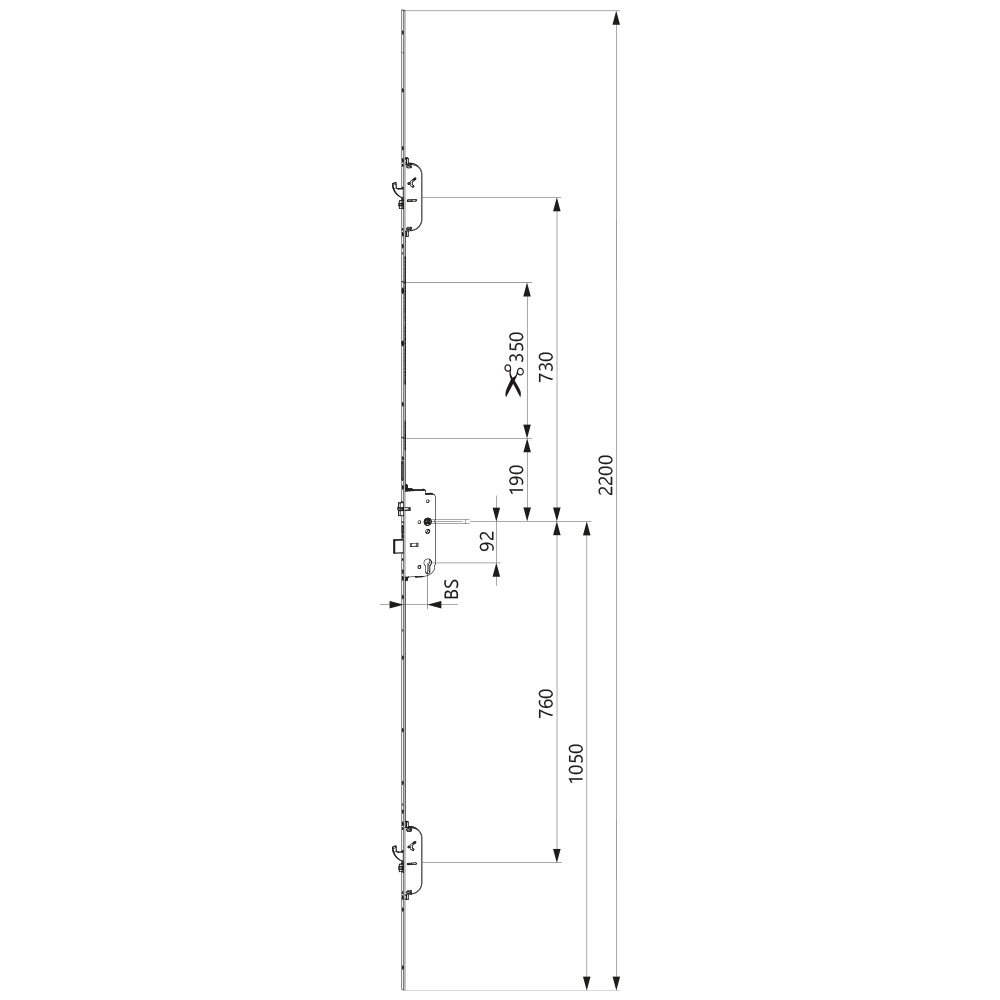

Backset: 35mm, 45mm, 55mm
Profile Centre: 92mm

Please select a product

Click on any of the following links to download the file.

Magnet Operated Automatic Locking, Full Length Hook Lock - Locks as soon as the door is closed!

Key Features

Three latches engage, ensuring an even distribution on the weather seals along the entire height of the door. The door is sealed tight, keeping drafts and moisture outside and the warmth inside.
The main latch automatically triggers the locking mechanism as soon as the door enters the frame. In addition, a magnet monitors the correct closing position, forming the two criteria to ensure secure locking. Two hooks and the central deadbolt automatically engage, and the door is triple locked all without a key.
Two options available to change the automatic locking function to a day-latch function for ultimate ease of use.
Easy to pair with any of Maco’s electronic locking options.
The A-TS can be used for left hand or right hand configurations, simply by unscrewing and reversing the latches.

Key Technical Details

Backset: 35mm, 45mm, 55mm
Profile Centre: 92mm
