ERA Standard Multipoint Locks

Backset

Please select from the options above.

Quantity:

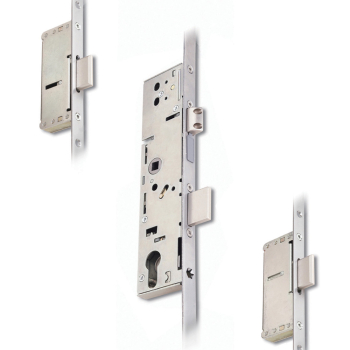

ERA Standard Multipoint Locks - Linear-bolt lock | Full length | Lever operated

Key Features

High security door lock with twin linear bolts providing optimum security
Non-handed lock mechanism with reversible latch bolt to minimise stock requirements
Twin high security bolts for anti anti-separation resistance - bolts throw 18mm
Accepts standard 92mm unsprung handles and Euro profile cylinders
Optional shootbolt engagement for additional security. This fits onto a serrated cam-rod which starts 150mm from the bottom of the faceplate and is 1810mm high up the back of the lock.
BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours)
PAS24 Accredited

Key Technical Details

Backset: 35mm, 45mm
Profile Centre: 92mm
Groove Detail: 16mm Euro
Handle Height: 1050mm
Suits Door Heights: 1810 - 2250mm (Can be cut shorter at customer's discretion)

Please select a product

There are no downloads for this product.

Descriptions

ERA Standard Multipoint Locks - Linear-bolt lock | Full length | Lever operated

Key Features

High security door lock with twin linear bolts providing optimum security
Non-handed lock mechanism with reversible latch bolt to minimise stock requirements
Twin high security bolts for anti anti-separation resistance - bolts throw 18mm
Accepts standard 92mm unsprung handles and Euro profile cylinders
Optional shootbolt engagement for additional security. This fits onto a serrated cam-rod which starts 150mm from the bottom of the faceplate and is 1810mm high up the back of the lock.
BS EN 1670:2007 Grade 4 Corrosion Resistance (240 hours)
PAS24 Accredited
