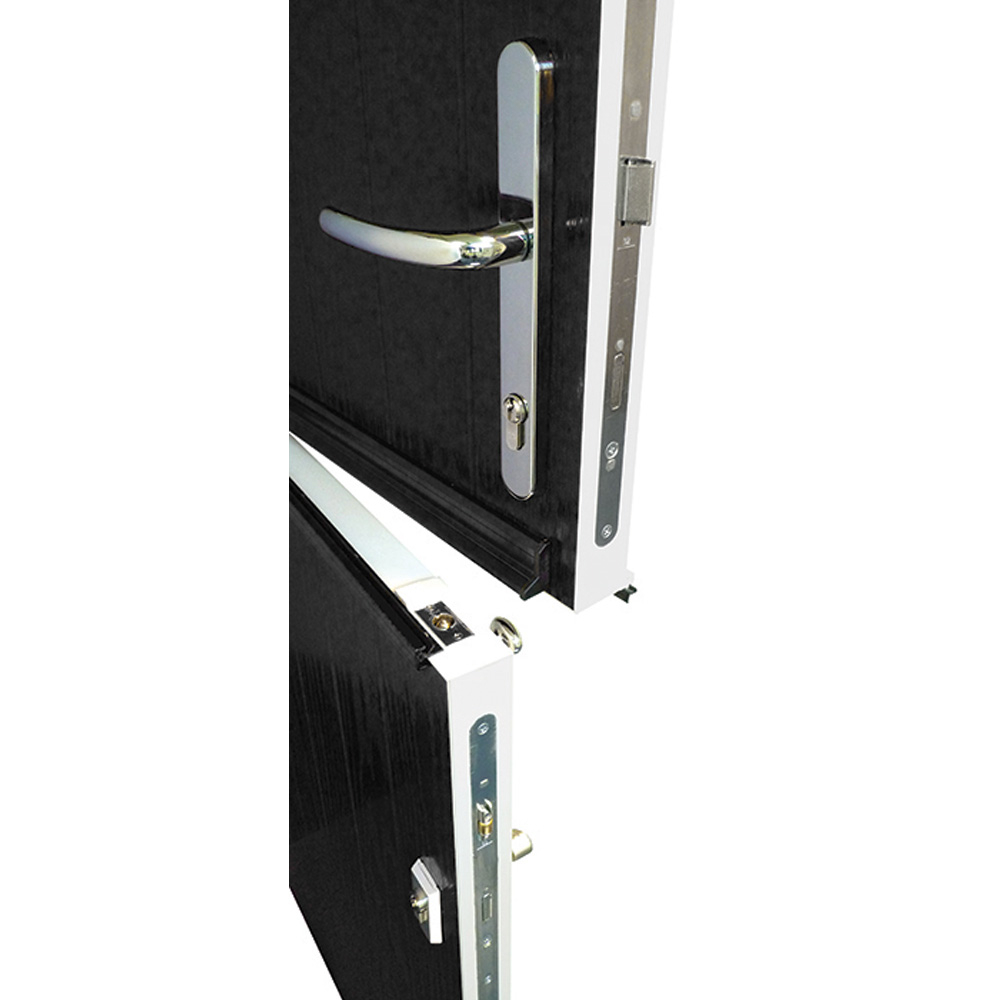

Winkhaus purpose-made stable door locking system Radius End

A purpose-made stable door locking system for wooden and composite doors. This lock comprises of 2 completely seperate locks for the upper/lower half of the stable door and ensures maximum security whilst retaining the traditional feel of the stable door.

The Upper lock has a lever operated gearbox with a latch and a deadbolt with a further hook-bolt higher up the door.

The Lower lock has a roller latch and a euro-cylinder operated lock with a further hook-bolt lower down the door.

A rackbolt and turn is commonly used to connect the two doors together.

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
A purpose-made door locking system especially developed for timber stable doors, incorporating two completely separate locks rather than a mismatched combination of other locks.
Featuring a high strength centre gearbox to reduce the risk of malicious abusive loads and 25mm throw tapered plated steel hooks for optimum security, ease-of-operation and weather performance.
Lever operated top lock and key operated bottom lock with roller latch.
Non-handed locks to avoid incorrect factory or site manipulation.
Chamfered hook-bolts allow for greater fitting tolerance

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Lock Throw: 25mm
Handle Height: 1050mm (recommended)

Complete door kit requires the following (note: they are not included with this product)

Upper and Lower lock with keeps
2x Euro Cylinders
1x Pair of Escutcheons
1x Set of Lever Handles
1x Rackbolt with turn
2x Pairs of Hinges
