Winkhaus AV2 AutoLock Multipoint Lock Radius End

Backset

Handing

Please select from the options above.

Quantity:

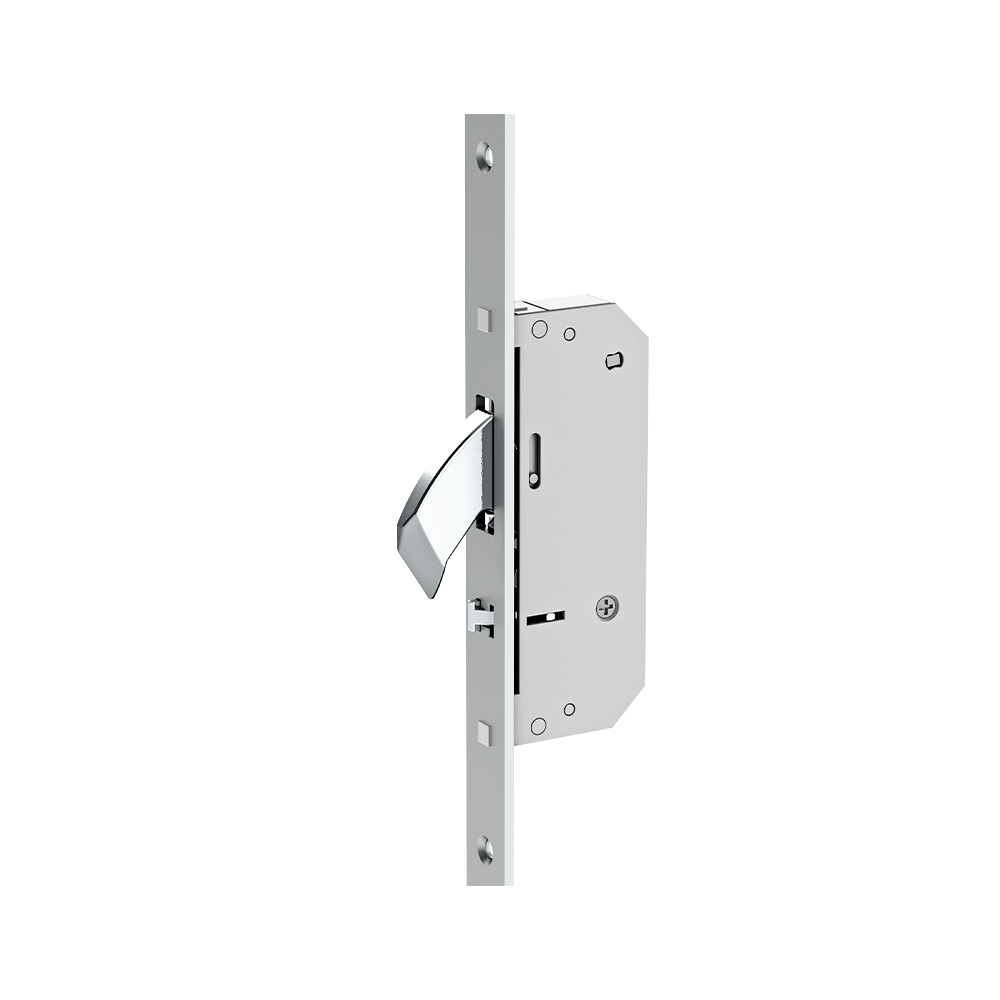

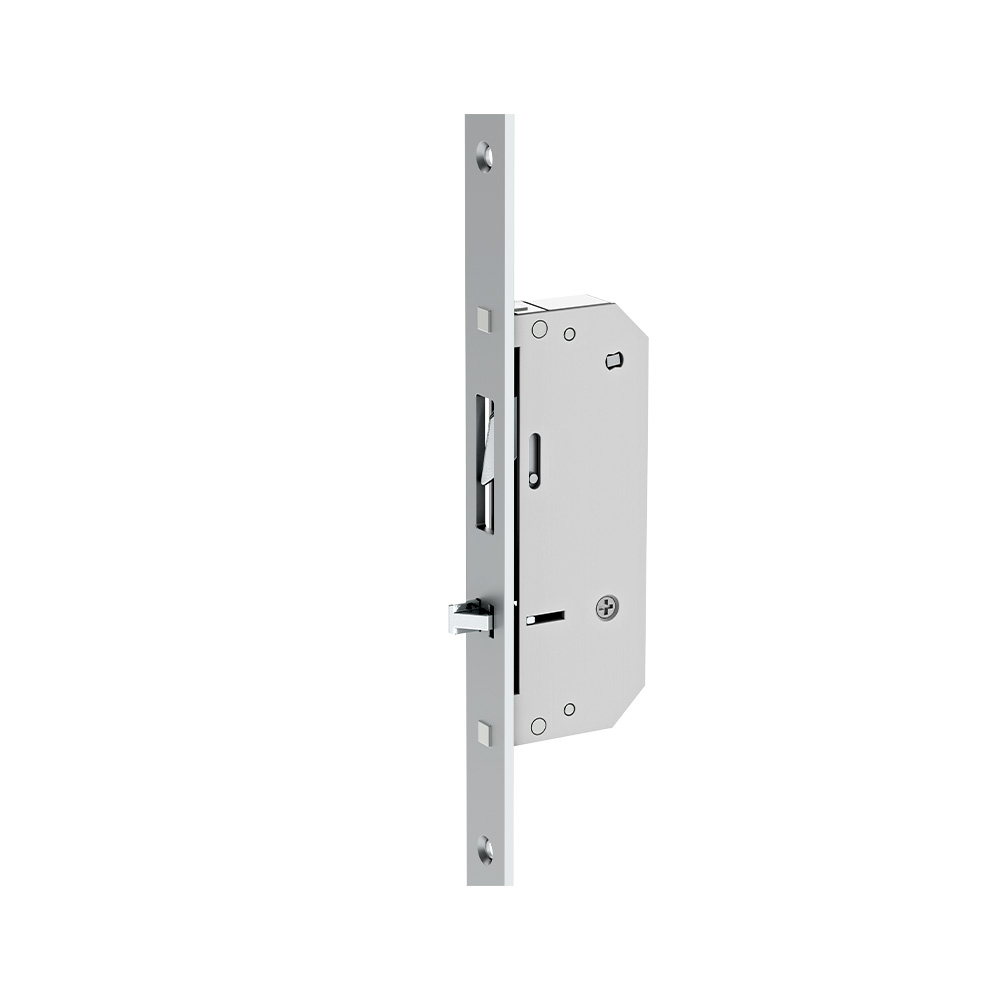

AV2 Automatic Locking Single Door Multi Point Lock - Hook Lock | Radius End

The Winkhaus AV2 is an automatic lock activated when the door is closed by two nibs on the top/bottom hooks coming into contact with the keeps.

Radius end faceplate doesn’t require cropping.

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
With the Winkhaus autoLock AV2 full security is automatically engaged - preventing the door being ‘locked on the latch’.
Simply shut the door and its locked & secure!
Enter via a key from outside. Exit by unlatching the door using the cylinder (key or turn) with no need to lift the handle to engage the lock.
Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
Superbly engineered to provide very high security which is approved by the Police ‘Secured by Design’ initiative.
Option to be paired with electronic features.

Specially designed chamfered hook allows for a high degree of fitting tolerance.

Two solid anti-pushback hooks operate automatically giving instant security.

The door automatically locks when closed and a key is required to gain entry from the outside.

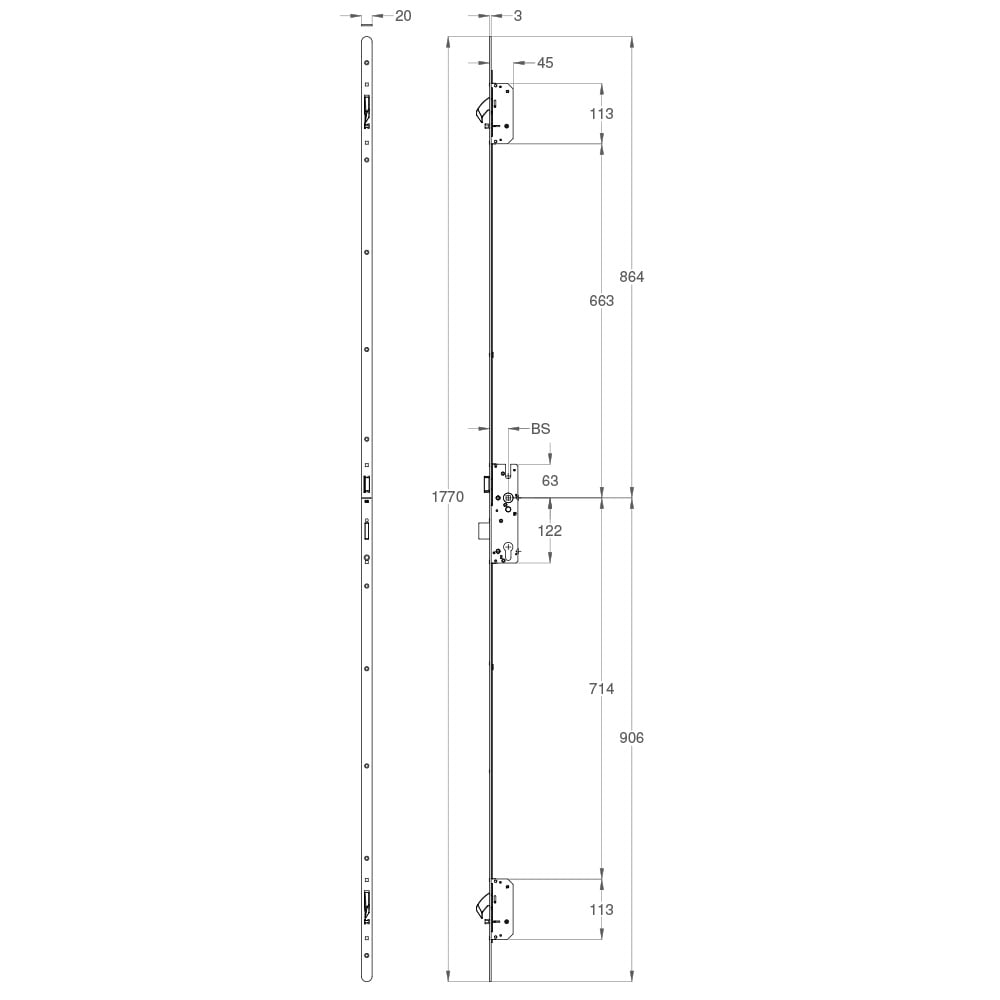

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Lock Throw: 25mm
Handle Height: 1050mm (recommended)

Note: These locks are handed. To find out the handing of your door, click on the link below.
