Winkhaus Short FAB Slave Door Multipoint Lock

Handing

Please select from the options above.

Quantity:

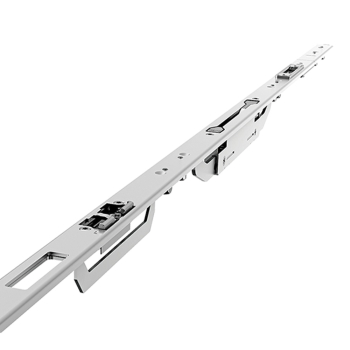

Winkhaus Short FAB slave lock - Shootbolt keep rail with integrated shootbolts designed for slave doors with no handle in a pair of double doors.

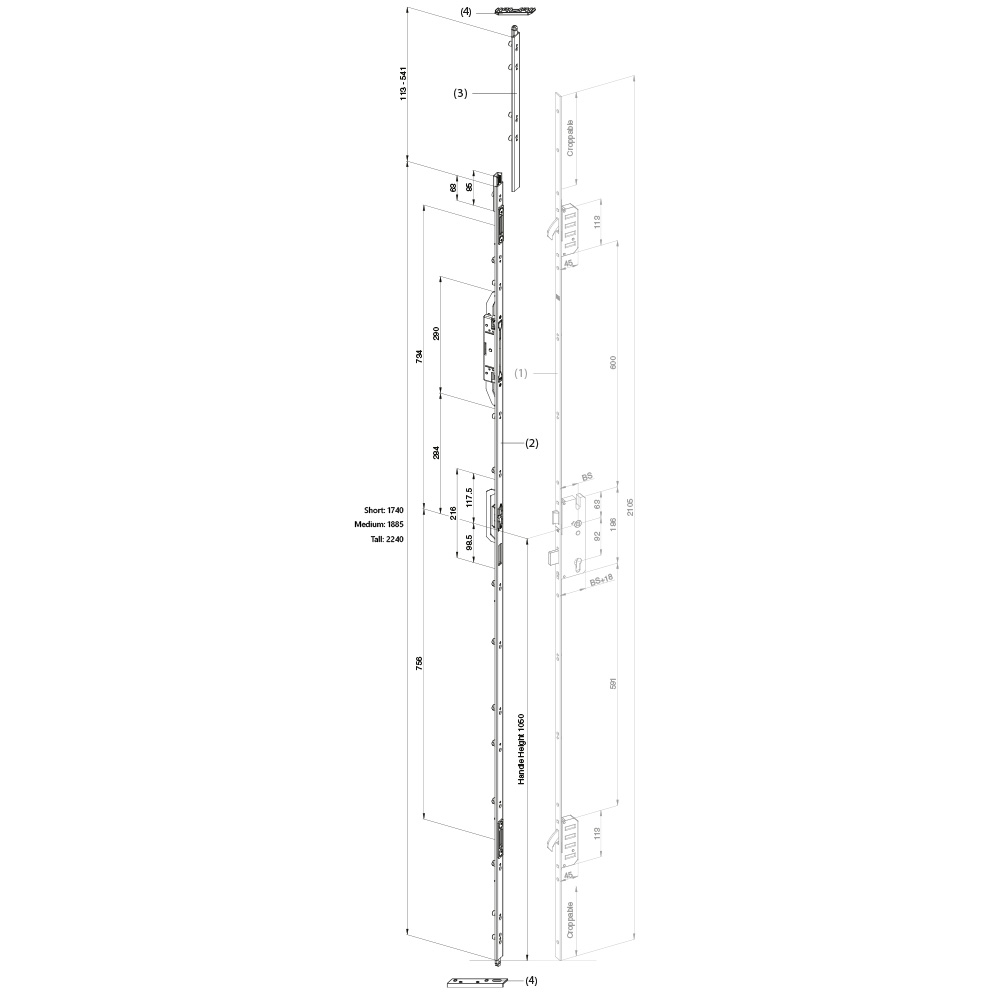

To suit 1853-2565mm door height

A FAB Slave door lock provides high security locking without the need for a lever handle on the slave door.

Note: Requires 1x shootbolt at the top

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus FAB Slave Lock provides high security locking without the need for additional security hardware.
An attractive alternative to normal slave door locks with exceptional flexibility, easy operation and quick installation.

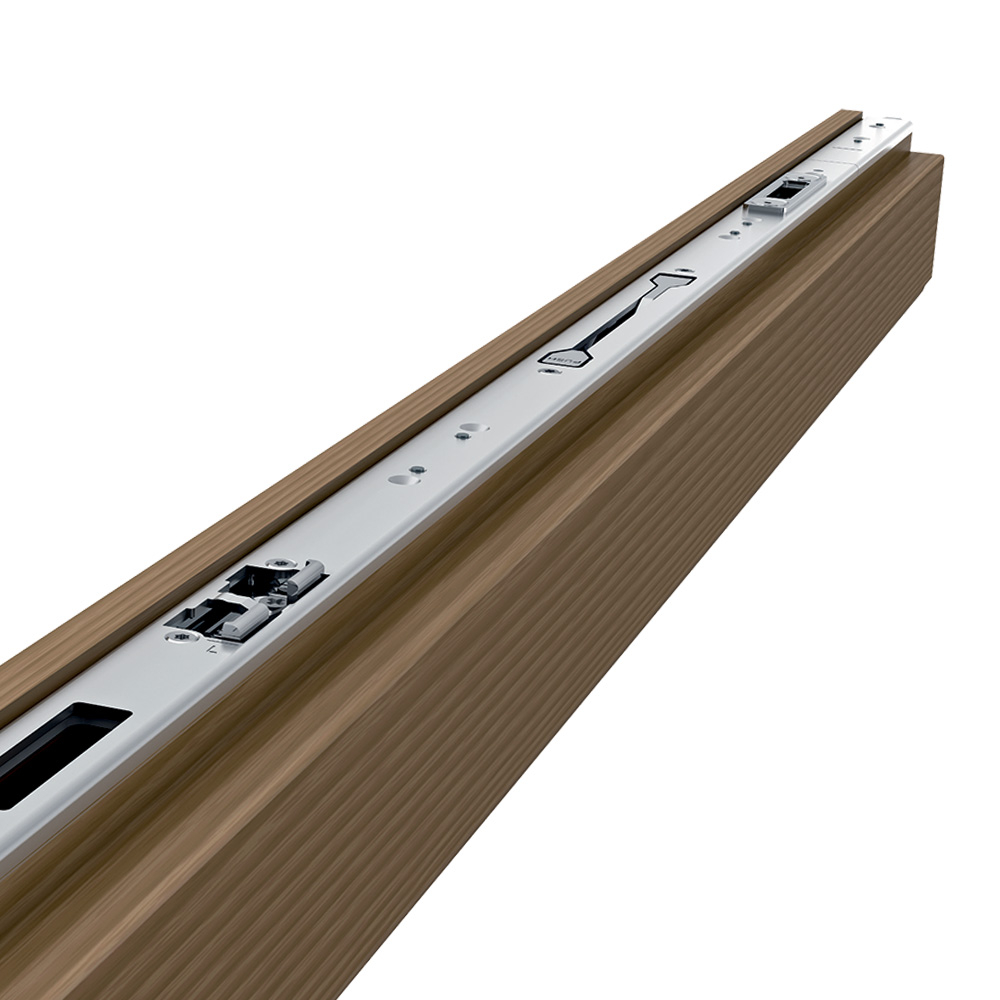

Operated by a flush two way lever, the FAB Slave Lock throws two heavy duty 20mm shootbolts into the head and the sill.
Combined with a multi-point lock on the master door, the locking points engage the FAB Slave Lock to secure both leafs together.
Ideal for double doors with irregular sash widths.
Compatible with Winkhaus locks such as Thunderbolt, AV2, AV3 and more.

Please select a product

Click on any of the following links to download the file.

Winkhaus FAB - Brochure (pdf)

Descriptions

Note: Requires 1x shootbolt at the top

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus FAB Slave Lock provides high security locking without the need for additional security hardware.
An attractive alternative to normal slave door locks with exceptional flexibility, easy operation and quick installation.
Operated by a flush two way lever, the FAB Slave Lock throws two heavy duty 20mm shootbolts into the head and the sill.
Combined with a multi-point lock on the master door, the locking points engage the FAB Slave Lock to secure both leafs together.
Ideal for double doors with irregular sash widths.
Compatible with Winkhaus locks such as Thunderbolt, AV2, AV3 and more.
