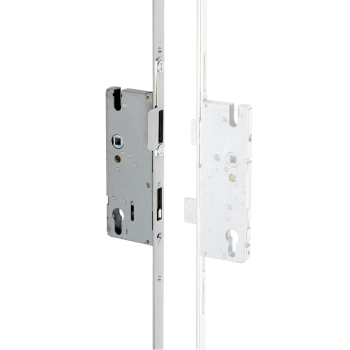

Winkhaus FGTE Slave Door Multi-Point Lock

Backset

Handing

Door Thickness

Please select from the options above.

Quantity:

Winkhaus FGTE slave lock - designed for slave doors with a handle in a pair of double doors - 45mm Backset

To suit 1820-2563mm door height

This lock has cams on top and bottom to accept shootbolts (sold seperately) and keep cutouts to fit the bolts from the master door lock (sold seperately). The FGTE slave door lock has a central lever-operated gearbox which shoots the bolts top/bottom.

Note: Requires shootbolts at the top and bottom

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus FGTE Slave Lock for double doors incorporates a lever-operated shootbolt system meaning that both doors require levers.
Optional shootbolts on master doors for tall doors and providing up to 7 point locking.
+/- 2mm adjustment on latch striker plate and top/ bottom deadbolt keeps with Torx 15 adjusting tool.
20mm wide faceplate on both master and slave lock for ease of routing.
Meets PAS23/24 security and durability standards and is Police ‘Secured by Design’ approved.

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro

Please select a product

Click on any of the following links to download the file.

Winkhaus FGTE Brochure (pdf)

Descriptions

Note: Requires shootbolts at the top and bottom

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.
The Winkhaus FGTE Slave Lock for double doors incorporates a lever-operated shootbolt system meaning that both doors require levers.
Optional shootbolts on master doors for tall doors and providing up to 7 point locking.
+/- 2mm adjustment on latch striker plate and top/ bottom deadbolt keeps with Torx 15 adjusting tool.
20mm wide faceplate on both master and slave lock for ease of routing.
Meets PAS23/24 security and durability standards and is Police ‘Secured by Design’ approved.

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
