Winkhaus Thunderbolt - Radius End

Backset

Operation

Please select from the options above.

Quantity:

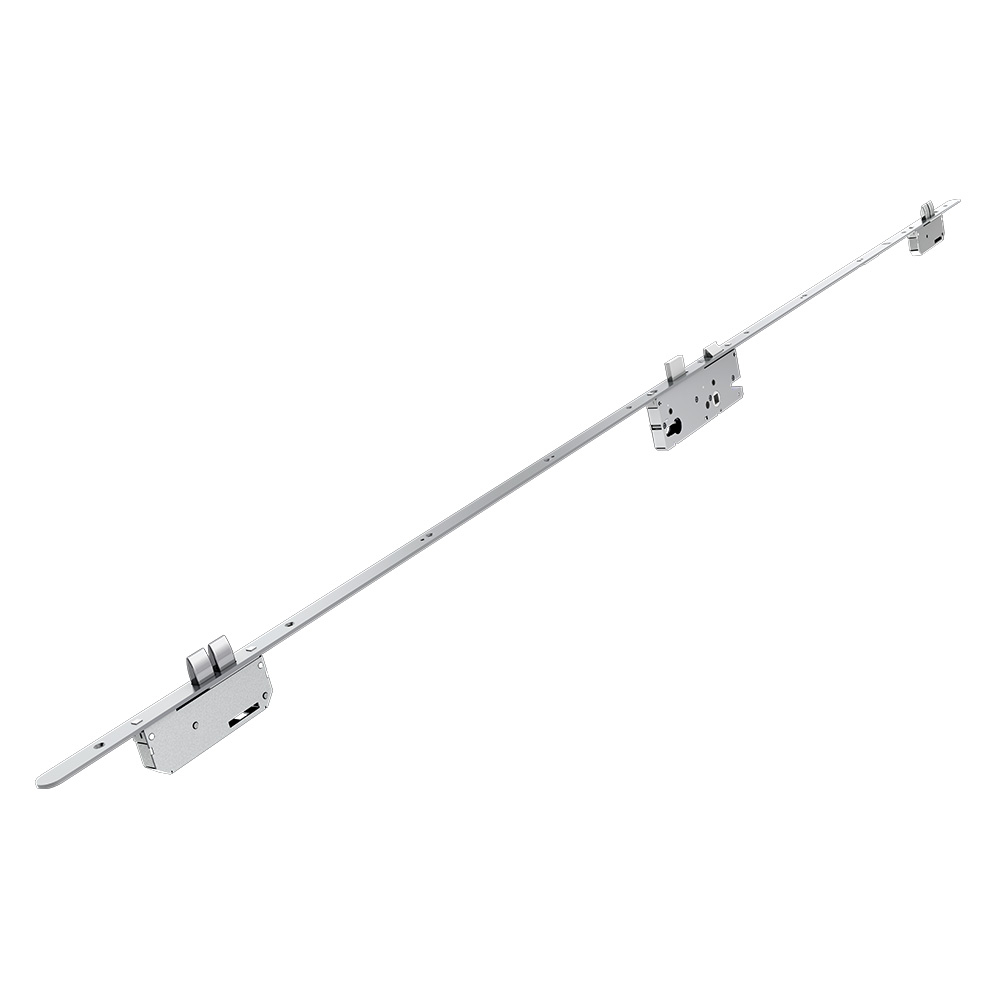

Thunderbolt - Deadbolt lock with radius end.

Option for lever operated or key/turn activated.
Radius end faceplate doesn't require cropping.

Key Features

Winkhaus is a market leader in producing innovative security solutions to meet the changing security and ease-of-use requirements.

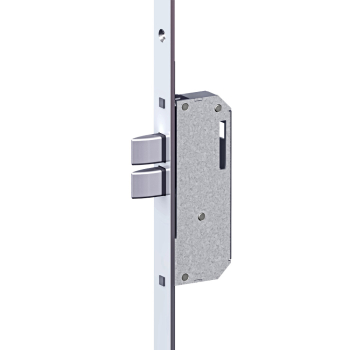

The Winkhaus Thunderbolt™ incorporates twin deadbolts in the upper and lower positions, for a total of 5 high security deadlocks.
Superbly engineered to provide very high security which is approved by the Police 'Secured by Design' to offer peace of mind.
Easily passes the rigours of PAS23/24 and EN 14351-1 2006 security standards when fitted into a door.
Unlike conventional hook locking systems the Thunderbolt has up to 50% greater fitting tolerance and a ±2mm adjustment is possible to adjust for misalignment after installation.
Locks are reversible; non-handed.

Key Technical Details

Backset: 45mm, 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Faceplate: 20 x 1770mm
Handle Height: 1050mm (recommended)

The Winkhaus Thunderbolt is supplied unhanded. If it is supplied with the latch striker in the wrong orientation it can be reversed in 3 easy steps.

Please select a product

Click on any of the following links to download the file.

Striker Latch Reversing Instructions (pdf)
