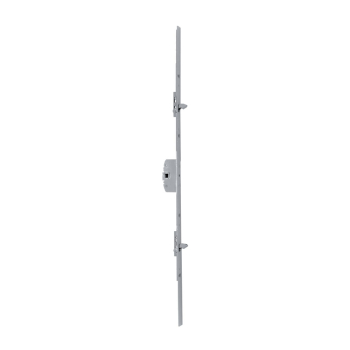

IPA EAR Espagnolette Lock

Backset

Length

Please select from the options above.

Quantity:

IPA ear espagnolette lock ideal for flush-casement or stormproof window applications.

'Ear' type locking system available with 28mm or 25mm backset.
Can be used with friction stays, extension pieces, connection pieces and shootbolts.
Requires 7-8mm spindle sleeve for use with standard espag handles.

Fits in the IPA 17.3 x 3mm groove.

Standard Shortening Possibilities:
130mm at the top with side bolts out.
130mm at the bottom with side bolts in.

Shortening Possibilities when used with handle operated friction stay:
110mm at the top with side bolts out.
130mm at the bottom with side bolts in.

*Keeps, Spindle Sleeves and Shootbolts not included.

Please select a product

Click on any of the following links to download the file.

Technical Drawing (pdf)

Descriptions

IPA ear espagnolette lock ideal for flush-casement or stormproof window applications.

'Ear' type locking system available with 28mm or 25mm backset.
Can be used with friction stays, extension pieces, connection pieces and shootbolts.
Requires 7-8mm spindle sleeve for use with standard espag handles.

*Keeps, Spindle Sleeves and Shootbolts not included.
