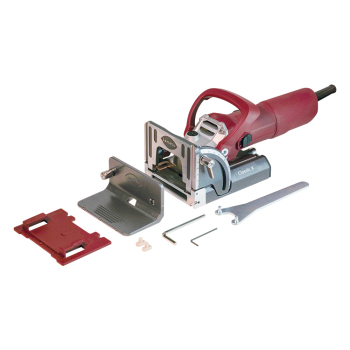

Lamello Classic X Biscuit Jointer

Stock Code: LAM101601GBS

1 In Stock

The Lamello Classic X is the original biscuit jointer from the inventor of the Lamello system for cutting the 4 mm groove.
The proven and well-designed Classic X is fast and versatile in its use and the basis for the wide range of connectors with fixed, self-clamping and detachable solutions.
Precision in every component leads to perfect accuracy of the workpieces and saves time.
The multifunctional stop square allows perfect mitres by applying on the exterior surface and stabilises the machine in vertical position.
Along with the fixed, self-clamping and detachable connecting fittings and the new Classic X, Lamello represents the most complete and versatile wood joining system.

The base plate, swivelling front stop and stop square is flush on both sides for efficient positioning on the work piece
Precision-machined guide and application surfaces for perfect fit of the work pieces
Slim but powerful 850W motor
Multifunctional stop square for vertical stability as well as perfect mitres due to the application on the outer surface for 22.5 and 45° angles
6 Standard Depths
c/w Systainer Case

Speed: 10,000min
Cutter: Carbide tipped
Cutter size: 100 x 4 x 22mm
Teeth: Z6 (3+3) with reversing teeth
Cutting Depth: 20mm max

Included in kit:

Classic X
Carbide tipped cutter
Suction stub 36mm
Stop Square
Spacer 4mm
Tool set
Systainer

Brand	Lamello
