Lamello Zeta P2 18v Cordless DP Jointer Body Only | Systainer Case

Stock Code: LAM101800GBSD

Available to Order - more stock is on the way

Join with cordless freedom.

The Cordless Lamello Zeta P2 is the profile biscuit jointer for P-System anchorage, and the Clamex P connector range in particular, and is used to connect wood materials.

The integrated vertical mechanical drive on the cutting spindle of the Zeta P2 is the centre-piece of this profile biscuit jointer. During the cutting process, the vertical mechanical drive automatically performs a vertical movement to create the profile groove. All P-System fittings are then manually inserted into this groove, ensuring a fast form-locking anchorage.

The Lamello Zeta P2 Biscuit Joiner can cut P-System grooves for connecting fittings with varying installation depths simply by turning the P-System depth adjuster, thus removing the need to change cutters.

The vertical movement for the profile groove is triggered automatically when the maximum cutting depth is reached and requires just a fraction of a second. The vertical mechanical drive combines process security and reliability with a low-wear, fully mechanical construction.

The Zeta P2 can also be employed as a standard biscuit jointer for original biscuits by simply deactivating the profile groove function and changing to a 4mm blade.

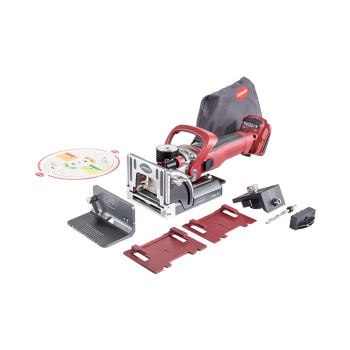

Supplied with:

Zeta P2 Cordless Biscuit Jointer
P-System Drill Jig & Drill
36mm Suction Stub
Stop Square
2 & 4mm Spacer
Dust Bag
Tool Set
Systainer Case

Note: Batteries and charger sold seperately.

Power: 1050W
Speed: 9000min
Cutter: Diamond tipped
Cutter size: 100 x 7 x 22mm
Cutting depth: 20mm max

Brand	Lamello
