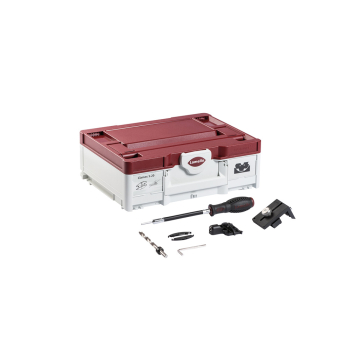

Lamello Clamex S-20 Starter Set 80pr/Drill Jig/Inst/Case

Stock Code: LAM145247

Available to Order - more stock is on the way

The Lamello Clamex S-20 is a knock down fitting based on the Clamex-P connector and is connected via a lever.
Unlike the Clamex P which can only be used with the Lamello Zeta biscuit jointer, the S-20 can be used in any 4mm groove cut by any biscuit jointer.

Each half of the connector is secured using 2 screws and the lever is accessed via a 6mm hole.

The design of the fitting was further perfected by introducing two stabilisers which offer strong dimensional stability.
Clamex S-20 has an installation depth of 12.3mm.

Min. Panel Thickness: Mitre joints - 14mm / Butt joints - 16mm
Size: 59 x 12 x 3.9mm
Cutter: 100 x 4 x 22mm

The starter kit comes with everything needed to beging assembling with the Clamex S-20 including:

80 x Clamex S-20 connectors (including screws)
Clamex S-20 Drill Jig including 6mm drill bit and depth adjuster
Clamex S-20 Allignment Jig
Clamex Installation Tool
Systainer Box

Brand	Lamello

Click on any of the following links to download the file.

Instruction Manual (pdf)

Descriptions

The Lamello Clamex S-20 is a knock down fitting based on the Clamex-P connector and is connected via a lever.
Unlike the Clamex P which can only be used with the Lamello Zeta biscuit jointer, the S-20 can be used in any 4mm groove cut by any biscuit jointer.

Each half of the connector is secured using 2 screws and the lever is accessed via a 6mm hole.

The design of the fitting was further perfected by introducing two stabilisers which offer strong dimensional stability.
Clamex S-20 has an installation depth of 12.3mm.

Min. Panel Thickness: Mitre joints - 14mm / Butt joints - 16mm
Size: 59 x 12 x 3.9mm
Cutter: 100 x 4 x 22mm

The starter kit comes with everything needed to beging assembling with the Clamex S-20 including:

80 x Clamex S-20 connectors (including screws)
Clamex S-20 Drill Jig including 6mm drill bit and depth adjuster
Clamex S-20 Allignment Jig
Clamex Installation Tool
Systainer Box

Specifications

Brand	Lamello

Downloads

Click on any of the following links to download the file.

Instruction Manual (pdf)
