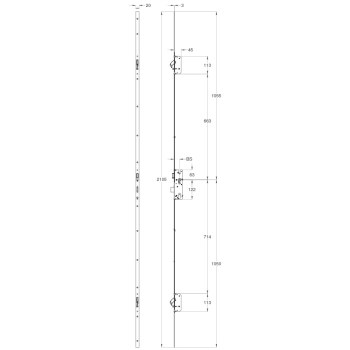

AV2 Automatic Locking Single Door Multi Point Lock - Hook Lock | Full Length - Left Hand
The Winkhaus AV2 is an automatic lock activated when the door is closed by two nibs on the top/bottom hooks coming into contact with the keeps.
Full length faceplate designed for a groove down the full edge of the door and crop the lock to suit.
Key Features
Specially designed chamfered hook allows for a high degree of fitting tolerance.
Two solid anti-pushback hooks operate automatically giving instant security.
The door automatically locks when closed and a key is required to gain entry from the outside.
Key Technical Details
Backset: 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Lock Throw: 25mm
Handle Height: 1050mm (recommended)
Winkhaus item number: 2352801
Note: These locks are handed. To find out the handing of your door, click on the link below.
Handing | Left Hand |
---|---|
Backset | 55mm |
Brand | Winkhaus |
Faceplate | 20 x 2105mm |
Click on any of the following links to download the file.
AV2 Automatic Locking Single Door Multi Point Lock - Hook Lock | Full Length - Left Hand
The Winkhaus AV2 is an automatic lock activated when the door is closed by two nibs on the top/bottom hooks coming into contact with the keeps.
Full length faceplate designed for a groove down the full edge of the door and crop the lock to suit.
Key Features
Specially designed chamfered hook allows for a high degree of fitting tolerance.
Two solid anti-pushback hooks operate automatically giving instant security.
The door automatically locks when closed and a key is required to gain entry from the outside.
Key Technical Details
Backset: 55mm
Profile Centre: 92mm
Groove Detail: 20mm Euro
Lock Throw: 25mm
Handle Height: 1050mm (recommended)
Winkhaus item number: 2352801
Note: These locks are handed. To find out the handing of your door, click on the link below.
Handing | Left Hand |
---|---|
Backset | 55mm |
Brand | Winkhaus |
Faceplate | 20 x 2105mm |
Click on any of the following links to download the file.
