Maco Mk2 Shootbolt Espagnolette

The Maco Mk2 Multipoint Locking Shootbolt Espagnolette for side hung or top hung applications includes adjustable shootbolts and mushroom cams.

For side hung and top hung windows, designed to fit in a 16mm Euro-Groove, the espag system is comprised of a centre lock gear box and various croppable extensions.

Wrap around elements are also available, providing additional locking positions and improved compression for large, top hung windows.

  • Combines 7.7mm mushroom cams and adjustable shootbolts for additional security.
  • Adjustable 10 - 13mm shootbolt throw.
  • Croppable extensions to fit a wide range of sash rebates.
  • Meets the requirements of BS7950.
Maco Mk2 Shootbolt Espagnolette

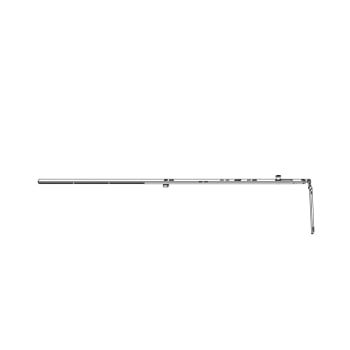

Maco Mk2 Croppable Extensions

Maco Mk2 Croppable Extensions

From £4.35 (exc VAT)
£5.22 (inc VAT)

More Details

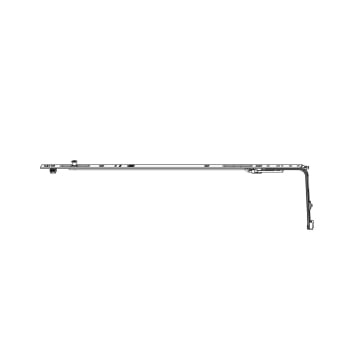

Maco Mk2 Wrap Around Elements

Maco Mk2 Wrap Around Elements

From £7.93 (exc VAT)
£9.52 (inc VAT)

More Details
Maco MkII 22mm B/Set Espag Gearbox 7.7mm Cam

Maco MkII 22mm B/Set Espag Gearbox 7.7mm Cam

Stock Code: MAC11041
Available to Order - more stock is on the way
Price Unavailable
- +
